Project Description

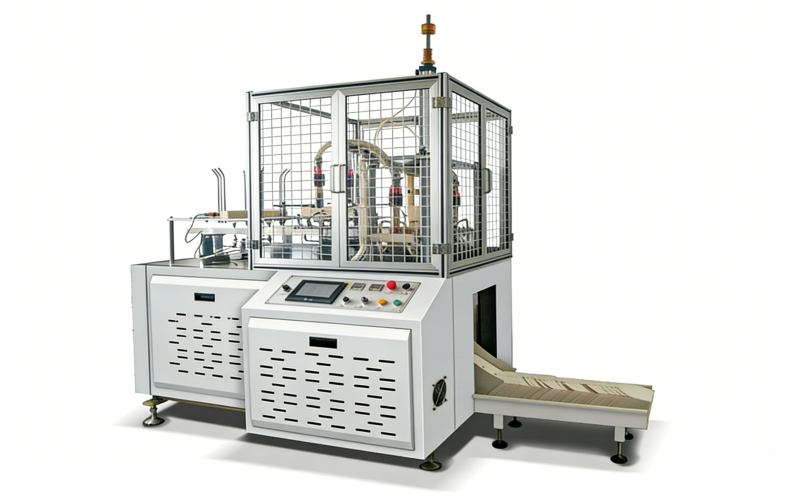

ZF-A Fully Automatic Paper Box Machine

  • mechanical transmission, speed, energy-saving, stable and simple operation, microcomputer detection and domestic advanced technology products.

  • full automatic intelligent medium speed cake cup machine is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.

  • For the production of single-cell disposable paper boxes, paper boxes, cupcakes, food packaging boxes and B automatic intelligent medium speed cake cup machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes.

  • The fastest working speed is 55 times per minute. It has the  monitor  computer system .If the fault the machine will stop and alarming

Description:

Type ZF-A
Production capacity 30-50times/min
Maximum size: 600 ×550mm
Suitable Material: 200-400g/m2 PE Coated paper
Total Power: 3KW
Total Weight: 1.2T
Overall Dimension: 2000 x 1200 x 2300 mm
Working Air Source: Air pressure 0.5-0.6Mpa (Need to buy compressor)

Warranty: 1year

Delivery time:25-30 days
