Project Description

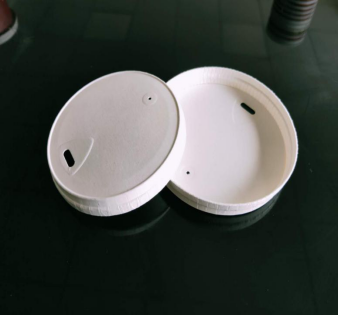

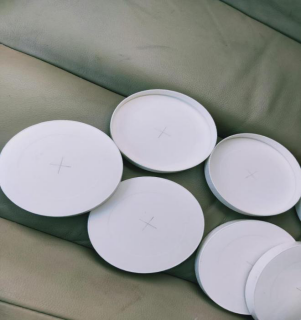

Single layer paper lid
Due to the different needs of the market, on the basis of double-layer paper cover, we have developed a single-layer paper cover.

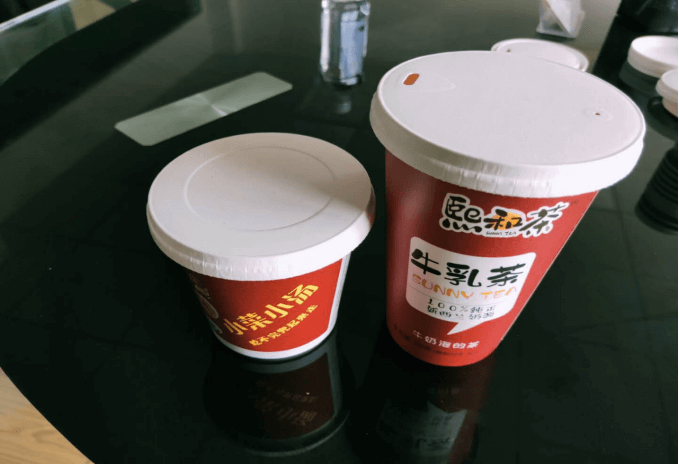

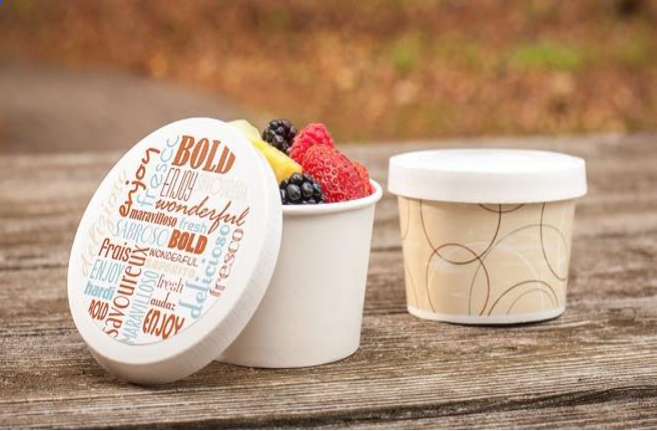

Compared with double-layer paper cover, it has fast speed and low cost. It is widely used in cold drinks, hot drinks, coffee, ice cream and so on.
- High speed 70-90pcs/min
- PLC control

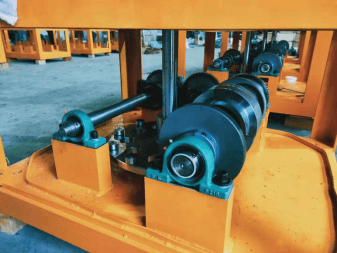

- Feed roll/sheet paper
- Auto emboss,creasing

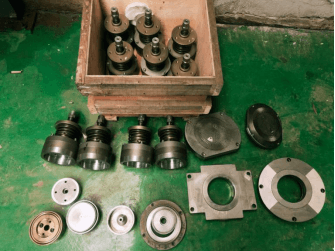

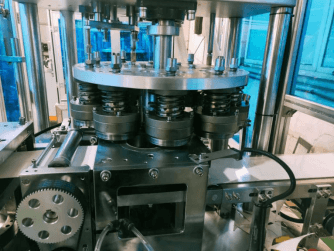

- Auto punching forming
- Auto lubrication
- Auto counter and conveyor
Description:
| Model | DM-100/145 |
|---|---|
| Paper Lid Cover Dia. | 55-145mm |
| Raw Material | Suitable paper weight190–400 gsm |
| Roll paper Max Dia. | 1100mm |
| Rated Productivity | Max100 pcs / Min |
| Power | 10kw |
| Power Source | 220V/380V ,50Hz |
| Machine weight | 2500kg |
| Packing Size | 2600*1500*1800MM |
| Working Air Source | 0.4MPa, 0.12m3/min |
| List of electrical appliances | Brand brand | Quantity |
|---|---|---|
| A 3P3 2 | France | 2 |
| 1P25A | France | 4 |
| 1P6A | France | 1 |
| Exchange 0910 | France | 4 |
| Exchange 3210 | France | 1 |
| Thermal relay | France | 3 |
| Switching power supply | Ming Wei, Taiwan | 1 |
| Relay | France | 9 |
| Phase Sequence Protector | 380 V imports | 1 |
| Knob and button | Otonix, Korea | 6 |
| Color Photoelectricity | Panasonic | 1 |
| BJ50-BDT of photoelectric switches | Otonix, Korea | 3 |
| Close switch PRE12-2DN | Otonix, Korea | 1 |
| Air insertion 8 cores | Domestic | 1 |
| Solid state relay | Otonix, Korea | 2 |
| Solid state relay | Yangming | 2 |
| H1S-1614MT( Procedure) | Huichuan | 1 |
| screen TK6071IQ( with line including program) | Huichuan | 1 |
| Temperature module | Otonix, Korea | 1 |
| S V660-0.75KW of servo motors | Huichuan | 1 |
| Frequency MD200/1.5KW/380V | Huichuan | 1 |
