Project Description
DM-90 Double Wall Paper Cup Making Machine
Product Description
- Two disks,Open cam

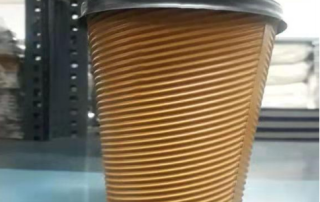

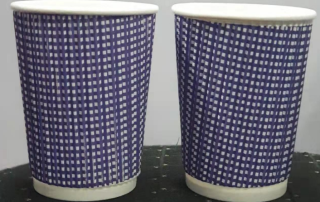

- Ripple and double wall can be produced

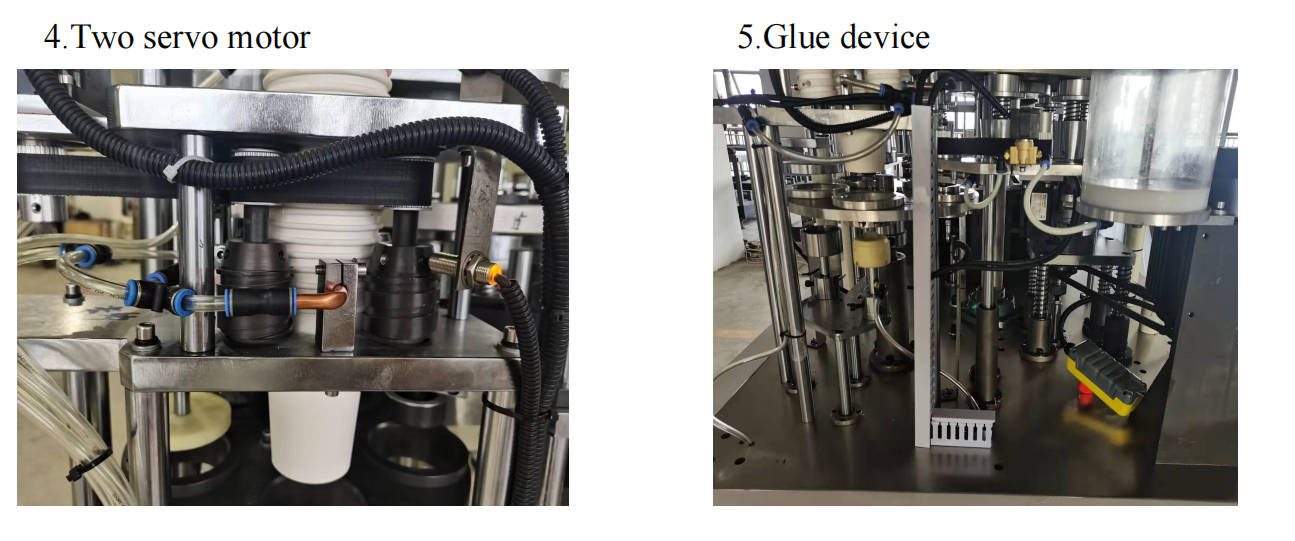

- Cup feeding by servo motor

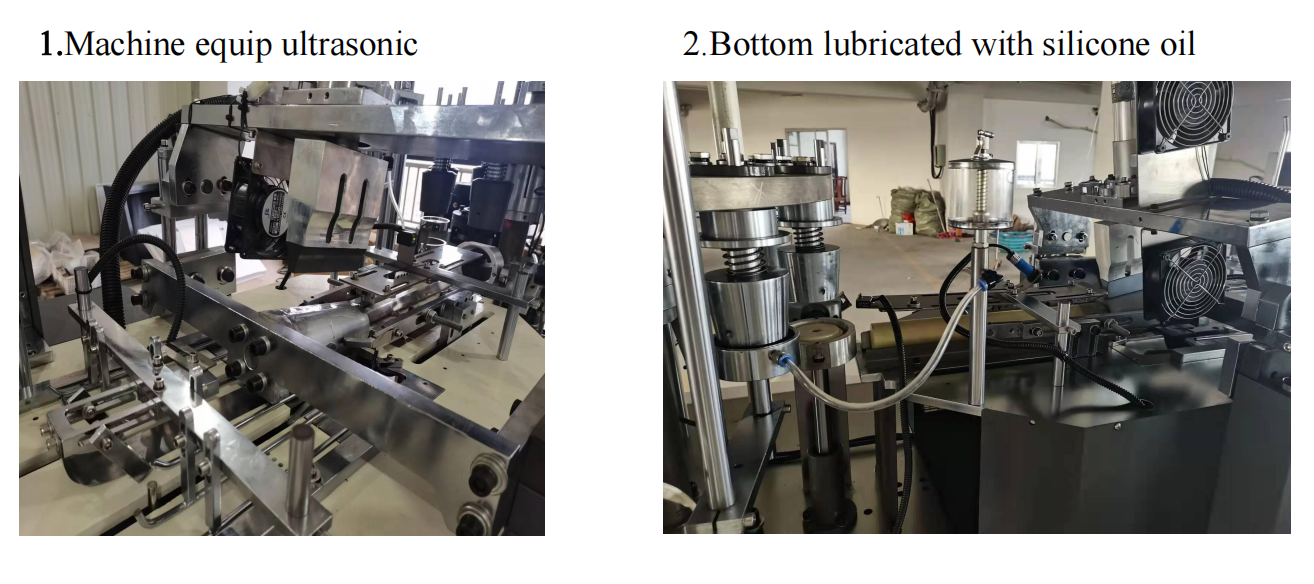

- Machine with ultrasonic,collecting table,Touch screen and PLC
- Auto lubrication
- High speed ,max speed 105pcs/min.stable speed 70-85pcs/min
Technical parameter
| Name | DM-90 Double Wall Paper Cup Making Machine |
|---|---|
| Paper Cup Size | 2.5-12oz |
| Paper Material | 140-320g/m2, PE Coated Paper Or Ripple paper |
| Speed | Max Speed:105pcs/min,Stable speed :70-85Pcs/min |
| Power source | 380V 50HZ |
| Heating total power | 5KW |
| Main motor | 1.5KW |
| Total Power | 7.5kw |
| Weight | 1600kg |
| Overall size | 2.23X1.14X1.8m |
| Air pressure | ≤0.4 MPa(used for auto bottom paper feeding) |
| Operation person | 1 person and more machines |
| Operation space | About 3000*3000 mm |
| Note | Can be customized according to your requirements |
Function Description
